Standardize your IV workflow with a complete, ready-to-use solution,
just add your software
Smarthood™ seamlessly integrates all IV workflow hardware into your Primary Engineering Control, allowing users to scan components, capture photos, take gravimetric measurements, and print sterilized labels all within the hood. By eliminating external clutter, Smarthood™ simplifies your workspace, boosts efficiency, and supports compliance, so you can focus on delivering safer patient care.
Key Features & Benefits
Protection Type: Product, Environment
Industries: Healthcare
USP <797> Compliant
- Designed to run your IV workflow solution
- All components within sterile field

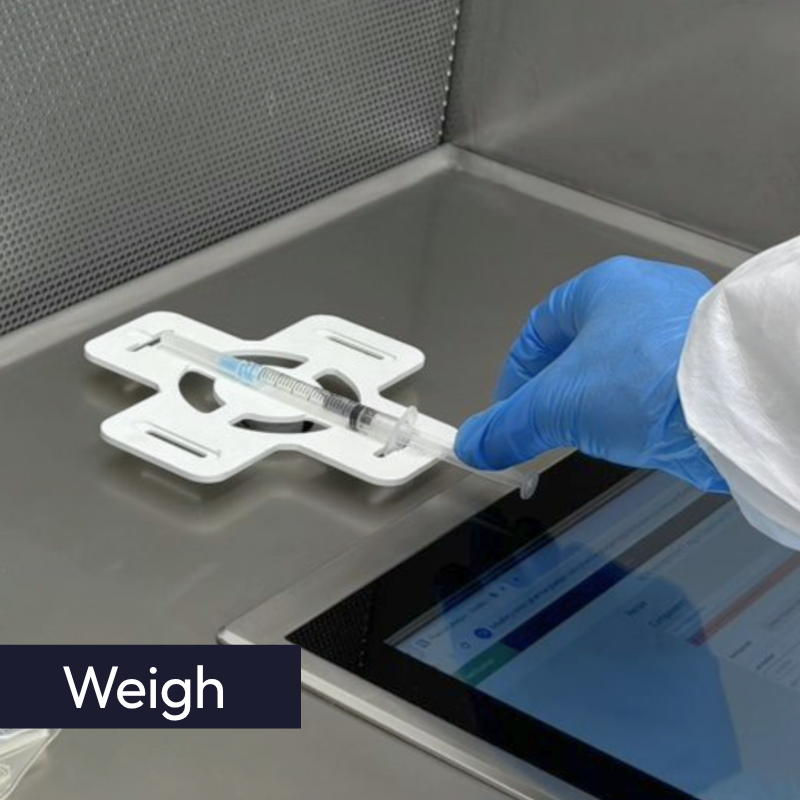

- Precise gravimetric measurements

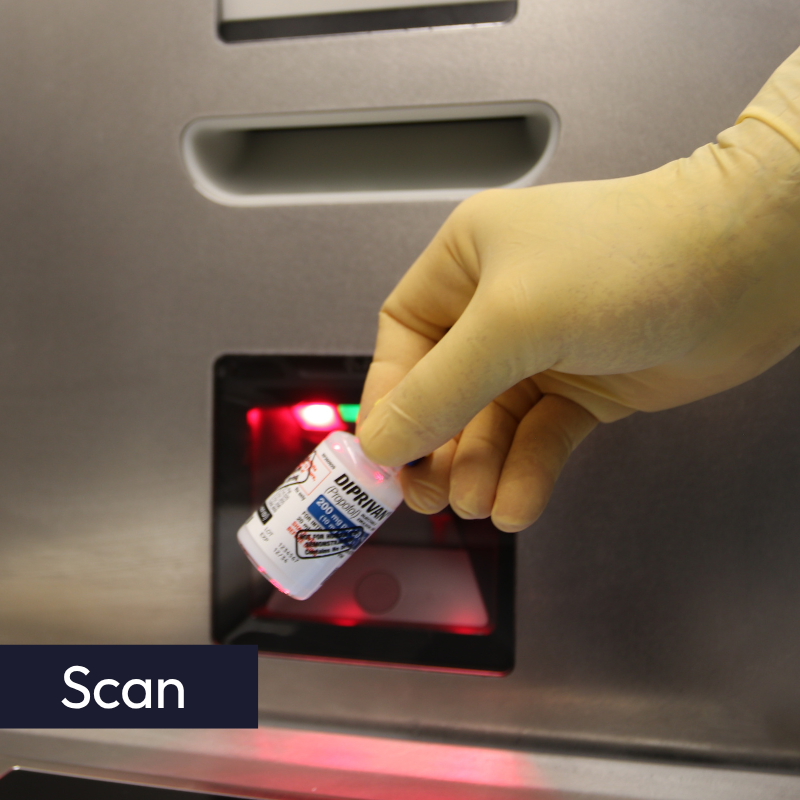

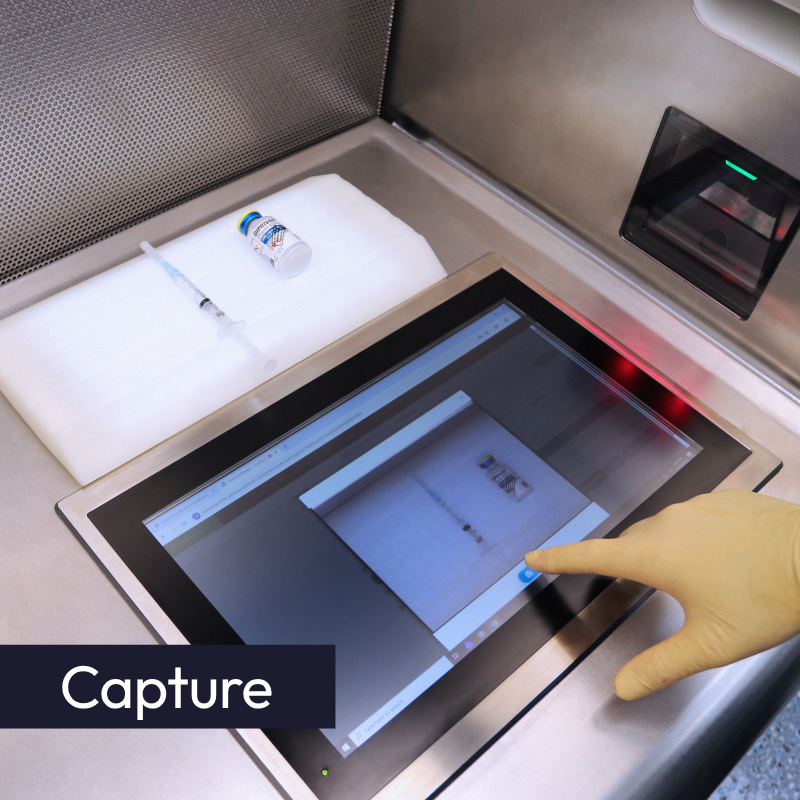

- No-touch scanning and photos
- Available as Horizontal LAFW or Class II BSCA (4 and 6-foot)
Smarthood™ Spotlight: Videos, Articles & More
Smarthood™: Setting a New Standard in IV Compounding
Latest Smarthood Demo 2025!
Smarthood Smoke Test | Z Series Model
Pharmacy Purchasing & Products Spotlight: Smarthood by Germfree
Ballad Health: The Impact of Smarthood™
Smarthood™ BSCA Walkthrough
Interview with Chris Jerry – The Emily Jerry Foundation
Smarthood™ Demo
Smarthood™ Advisory Board
Explore Smarthood™ in Depth with Our Downloadable Brochure!
Suitability
Designed to meet the needs of multiple applications, Smarthood™ is ideal for a wide range of industries and facilities.
Applications
Smarthood™ Specifications
Overall dimensions
| Model | Width | Depth | Height |
|---|---|---|---|
| SH-Z400 | 62" | 32" | 78" |
| SH-Z600 | 86" | 32" | 78" |
Work area dimensions
| Model | Width | Depth |
|---|---|---|
| SH-Z400 | 48" | 20" |
| SH-Z600 | 72" | 20" |
Electrical
Z-Series Requires 120VAC, 60Hz, 15A Circuit
Power Cord Length: 10 ft
4-Outlet Power Strip
(2) Sealed Data Ports included standard on right-side of the hood
Lighting
Energy efficient LED
Night mode lighting
Visual red light integrated into low flow alarm
Filters
Cleanroom Compliant Pre-Filter
Germfree SpillGuard for HEPA filter protection
HEPA Filter: 99.99% at 0.3 microns
Airflow
ISO 5 horizontal laminar flow air
Construction
Durable 16 & 18 Gauge 100% 304 Stainless Steel
Work Deck Material: 100% 304 Stainless Steel
Diffuser Material: 100% 304 Stainless Steel
IV Bar: Supplied Standard with 6 Hooks (Quantity of Hooks Dependent on Size)
Optional Seismic Anchoring Kit: Seismic Kit comes with floor & wall brackets for anchoring
Airflow Velocity
Unidirectional Horizontal Airflow of 90fpm +-20%
Performance
Airflow Volume at 90 fpm
Z400: 1006
Z600: 1531
Heat Rejected (BTU/Hour)
Z400: 1200
Z600: 1264
Smarthood™ Integrations
Runs existing IV workflow software
Built-in:
- Teguar 15.6″ LCD Touchscreen Computer
- Zebra SP72 Series Single-Pane Scanner

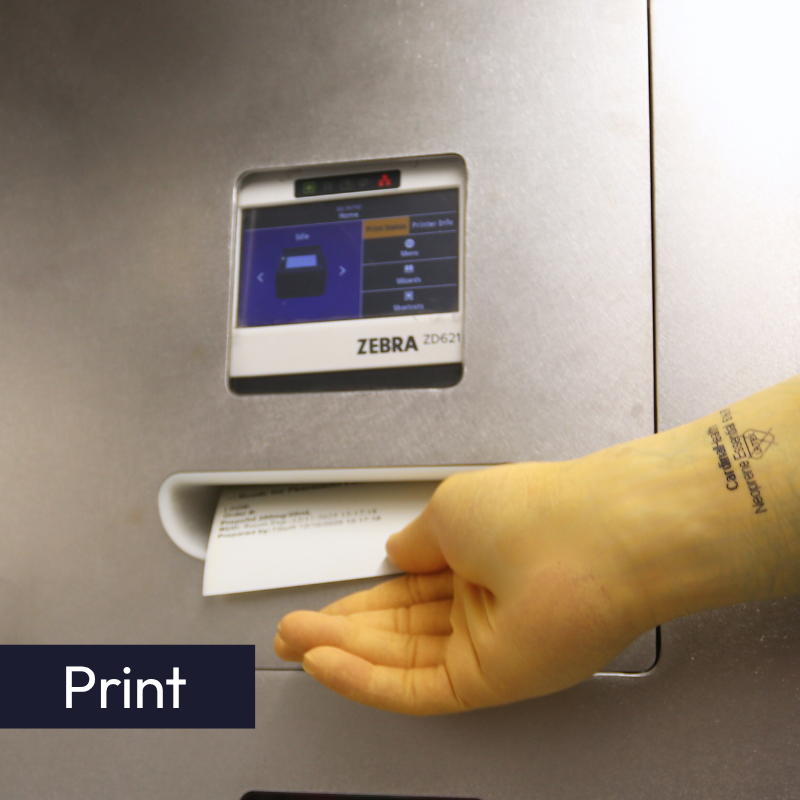

- Zebra ZD621 Printer including sterile labels
- Jabra Speaker System
- Mettler Toledo Scale (optional)
Overall dimensions
| Model | Width | Depth | Height | With Armrest | Exhaust |
|---|---|---|---|---|---|
| SH-B400A2 | 61" | 30" | 75" | 78"x34" | 33" |
| SH-B600A2 | 85" | 30" | 75" | 78"x34" | 45" |
| SH-B400B2 | 61" | 30" | 75" | 78"x34" | 33" |
| SH-B600B2 | 85" | 30" | 75" | 78"x34" | 45" |
Work area dimensions
| Model | Width | Depth |
|---|---|---|
| SH-B400A2 | 48" | 21" |
| SH-B600A2 | 72" | 21" |
| SH-B400B2 | 48" | 21" |
| SH-B600B2 | 72" | 21" |
Automatic Angled Front Window
Tempered glass front window can be adjusted between settings automatically using the touchscreen HMI
Touch Screen Controls
Large, back-lit touchscreen interface allows full control of BSC. Training videos come pre-loaded and can be viewed directly on the monitor. Password protected diagnostics module allows for easy troubleshooting by service personnel
Low Glare LED Lighting
Diffused LED light minimizes heat build-up and reduces glare. Lights change color to alert user of alarms and when the unit is in night mode
Night Mode
Unit can be placed in Night Mode, closing the front window while maintaining containment
Electrical Requirements
Standard: 120VAC, 60Hz, 15A Circuit
Electrical Cord
10′ power cord with molded grounded plug
Smarthood™ Integrations
Runs existing IV workflow software
Built-in:
- Teguar 15.6″ LCD Touchscreen Computer
- Zebra SP72 Series Single-Pane Scanner
- Zebra ZD621 Printer including sterile labels
- Jabra Speaker System
- Mettler Toledo Scale (optional)
Talk to us about The World's First Software Agnostic Smarthood™
